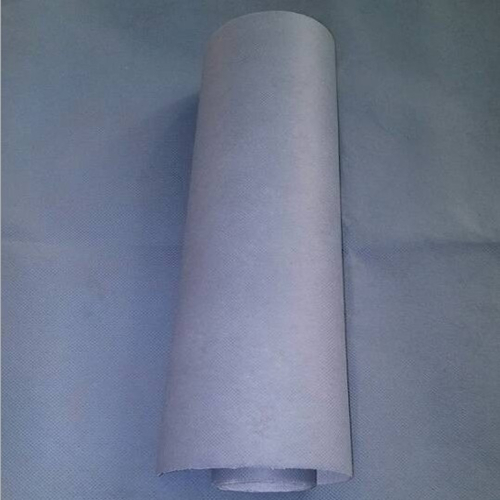

Position：Home > Products > Waterproof Breathable Membrane
Time：2016-11-25
| Technical Data | |||||||
| Technical Data | Unit | Specifications | |||||
| M80 | M90 | M100 | M120 | M140 | M160 | ||
| Weight per unit area | G/M2 | 80 | 90 | 100 | 120 | 140 | 160 |
| Width | M | 1.5(-0.5%,+1.5%) | 1.5(-0.5%,+1.5%) | 1.5(-0.5%,+1.5%) | 1.5(-0.5%,+1.5%) | 1.5(-0.5%,+1.5%) | 1.5(-0.5%,+1.5%) |
| Water impermeability | MM | ≧1500 | ≧1500 | ≧1500 | ≧1500 | ≧1500 | ≧1500 |
| Water vapour transmission | G/M2.24H | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 |
| Tensile strength (CD) | N/50MM | 70 20% | 75 20% | 100 20% | 120 20% | 150 20% | 170 20% |
| Tensile strength (MD) | N/50MM | 105 20% | 115 20% | 150 20% | 180 20% | 200 20% | 230 20% |
| Tearing strength (CD) | N | 60 20% | 70 20% | 80 20% | 115 20% | 120 20% | 140 20% |
| Tearing strength (MD) | N | 50 20% | 60 20% | 70 20% | 95 20% | 105 20% | 115 20% |
| UV resistance | Month | 3 | 3 | 3 | 3 | 3 | 3 |
